Specialty AN Adapter Fittings By Russell Performance |
|

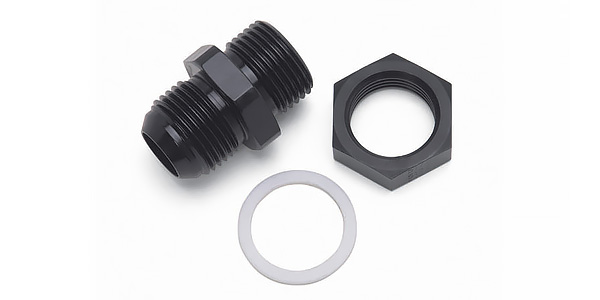

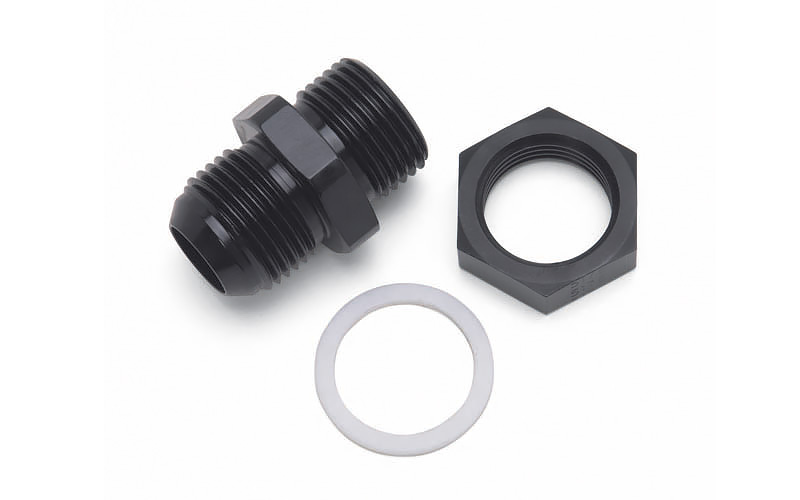

| FUEL CELL BULKHEADS |
 |
| Description |
Black |
| -6 AN Fuel Cell Bulkhead |
670850 |
| -8 AN Fuel Cell Bulkhead |
670860 |
| -10 AN Fuel Cell Bulkhead |
670870 |
| -12 AN Fuel Cell Bulkhead |
670880 |
|
|

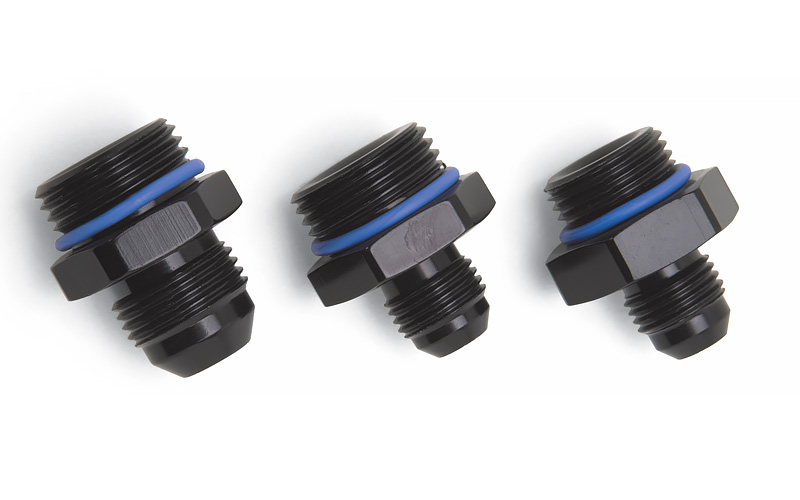

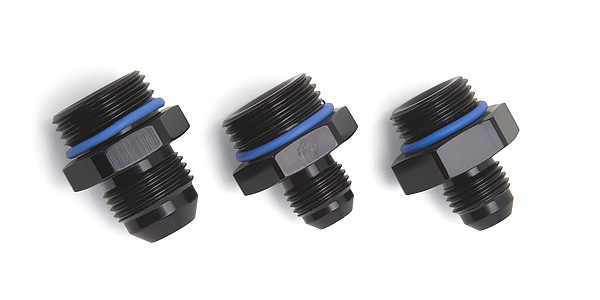

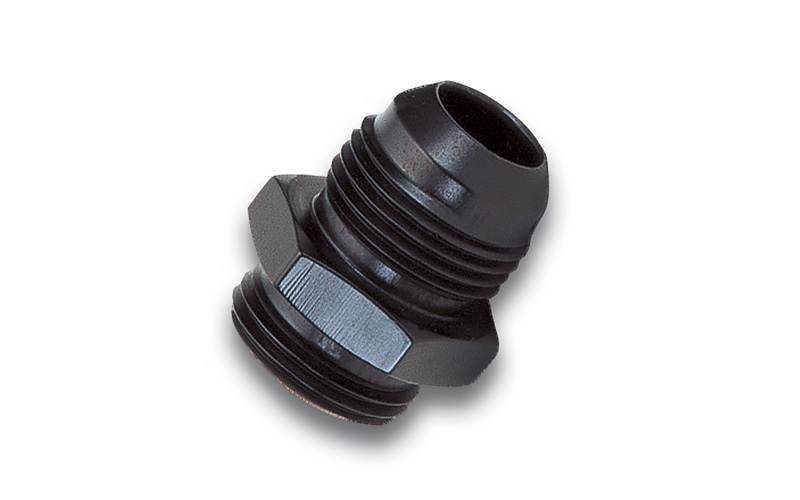

O-RING BOSS RADIUS AN PORT ADAPTERS
Russell radius port adapter fittings are precision machined for positive thread engagement. They feature radius profiled angles at port inlet/ outlet for optimum flow. These adapters are ideal when connecting regulators and fuel lines to pumps and tanks, and are also useful for dry sump applications. A black anodized finish is applied for appearance and durability. Each fitting is packaged complete with o-ring seal, except for -10 (670670) and -12 (670680), 1/2" NPT, which requires thread sealant. |
 |
| |
Black |
| AN Size |
Radius Port Size |
Single |
*Bulk |
| -6 AN |
-6 AN |
670840 |
- |
| -6 AN |
-8 AN |
670640 |
670648 |
| -6 AN |
-10 AN |
670650 |
- |
| -8 AN |
-6 AN |
670930 |
- |
| -8 AN |
-8 AN |
670700 |
- |
| -8 AN |
-10 AN |
670660 |
- |
| -10 AN |
-8 AN |
670940 |
- |
| -10 AN |
-10 AN |
670710 |
- |
| -10 AN |
1/2" NPT long |
670670 |
- |
| -12 AN |
-10 AN |
670720 |
- |
| -12 AN |
-12 AN |
670730 |
- |
| -12 AN |
1/2" NPT long (steel) |
670680 |
- |
| -16 AN |
-12 AN |
670690 |
- |
|
 INSTALLATION NOTE: * Packaged in Quantity of 25 pcs. |
|

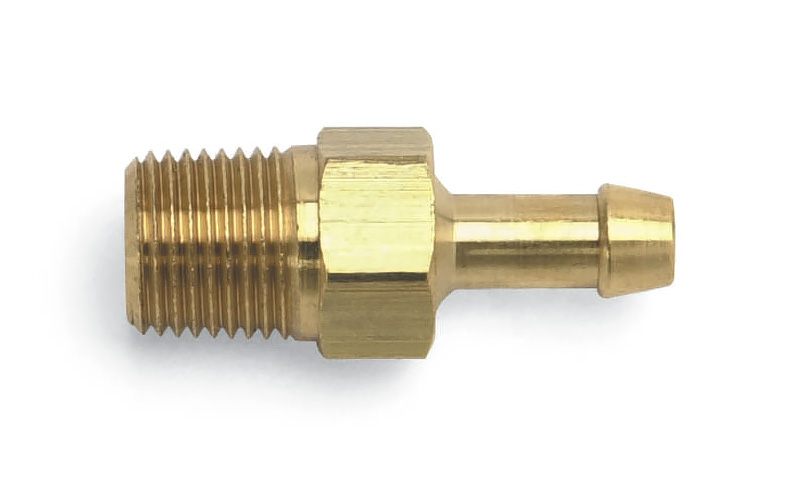

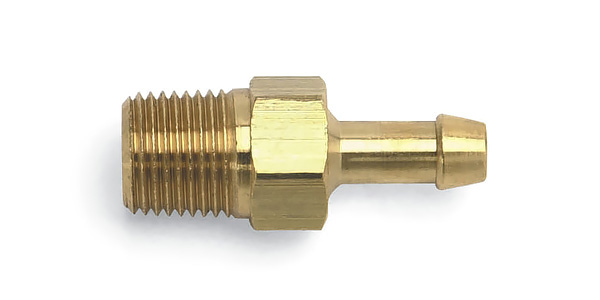

EDELBROCK MANIFOLD FITTINGS
These fittings are required when adapting metric size hose to standard NPT inlets/outlets. They eliminate having to force the hose over an oversized barb or excessive overtightening of the worm gear clamp to achieve a positive seal. Ideal for use with Edelbrock Victor X manifolds. |
 |
| Description |
Brass |
| 1/8 NPT x 3/16" Hose Fitting |
697000 |

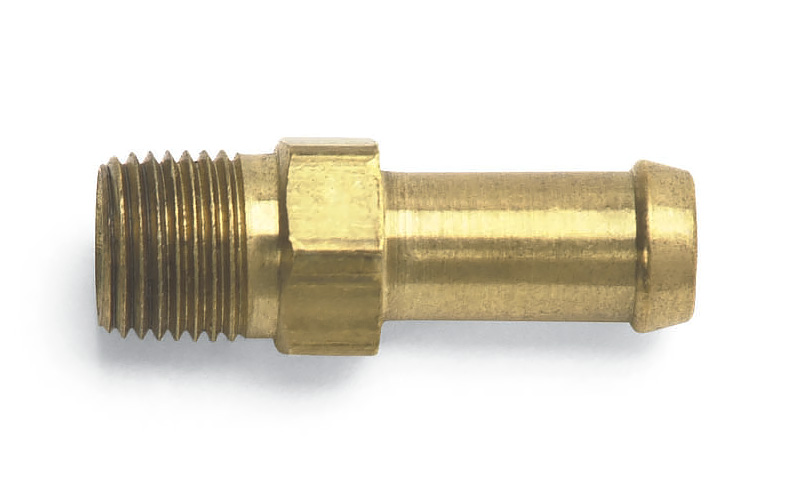

| 1/8 NPT x 8mm (5/16") Hose Single Barb Fitting (Designed for Metric Hose) |
697010 |

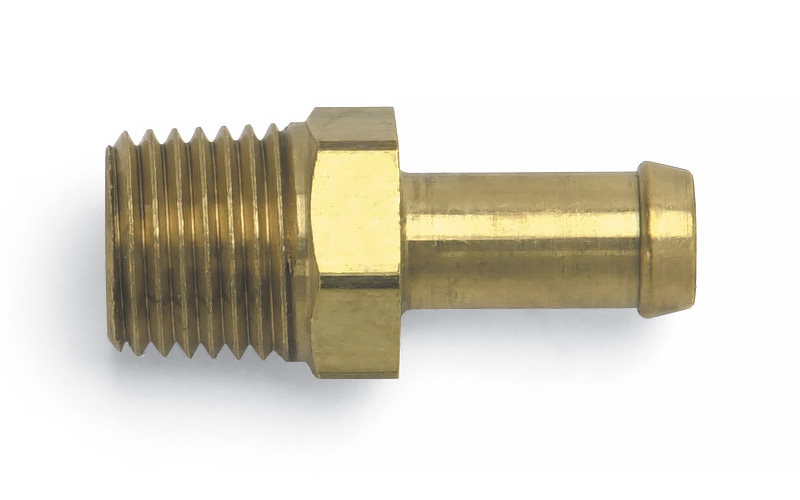

| 1/4 NPT x 8mm (5/16") Hose Single Barb Fitting (Designed for Metric Hose) |
697020 |
|
|
AN THREAD PORT PLUGS
These professionally silver anodized port plugs are for use with O-ring seal ports. |
 |
| Description |
Thread |
Silver |

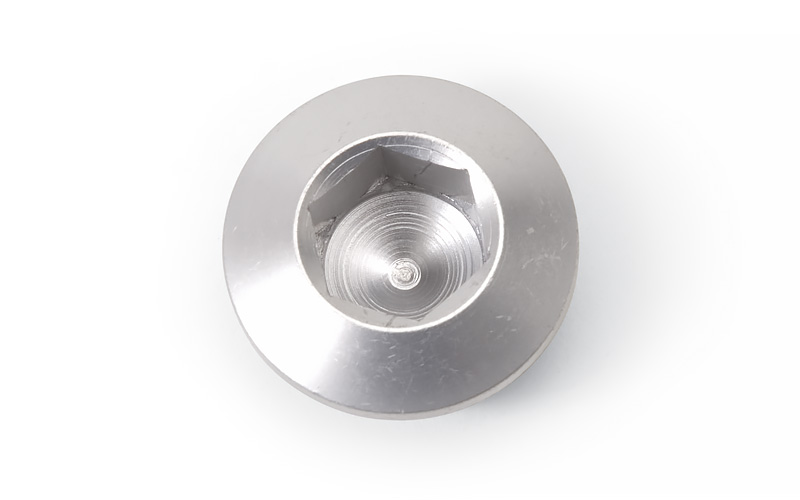

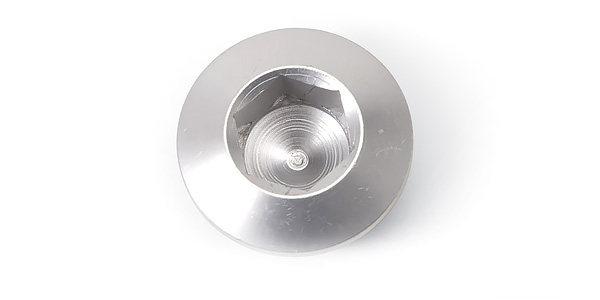

| -12 AN Male Allen Plug |
1-1/16" -12 |
662120 |
| -16 AN Male Allen Plug |
1-5/16" -12 |
662130 |
|
|

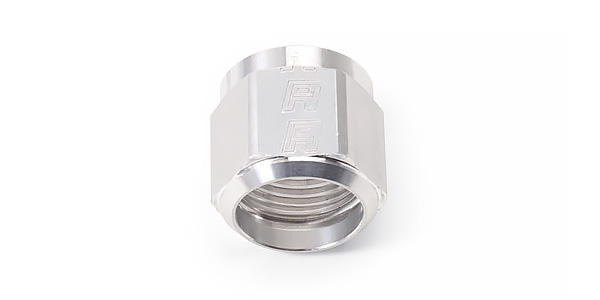

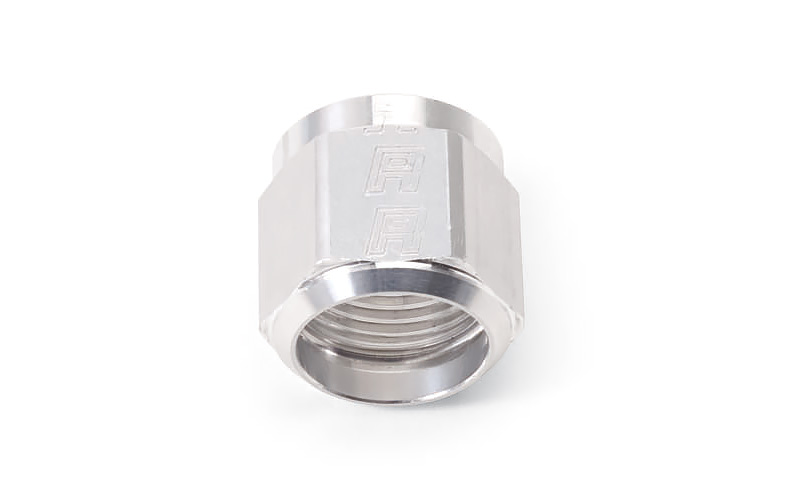

| FEMALE O-RING SEAL WELD BUNGS |
 |
| AN Size |
Thread |
Part # |
Use Fitting # |
| -6 AN |
9/16" -18 SAE |
640090 |
Radius AN Port Adapter or Radius Port Hose Ends |
| -8 AN |
3/4" -16 SAE |
640100 |
| -10 AN |
7/8" -14 SAE |
640110 |
| -12 AN |
1-5/16" -12 SAE |
640120 |
|
|

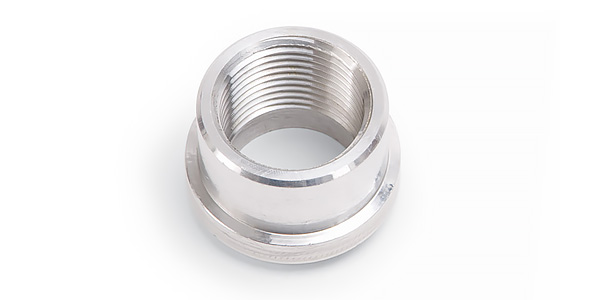

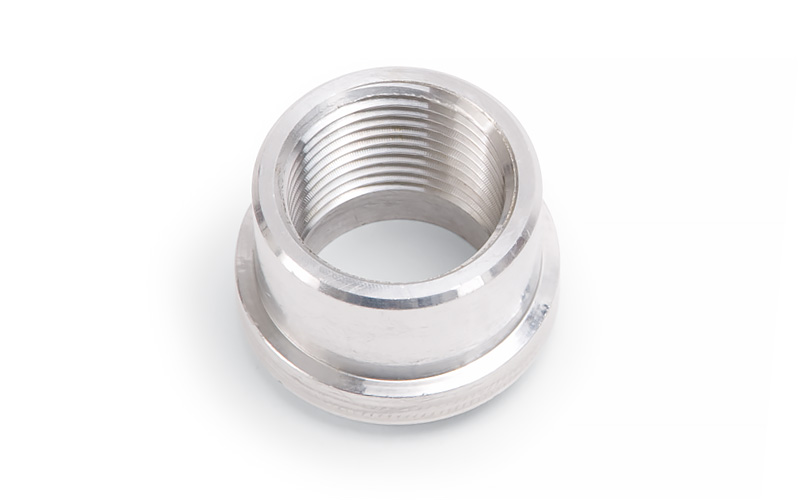

| FEMALE NPT WELD BUNGS |
 |
| Size |
Pipe Thread |
Part # |
| 1/8" |
1/8" -27 NPT |
670740 |
| 1/4" |
1/4" -18 NPT |
670750 |
| 3/8" |
3/8" -18 NPT |
670760 |
| 1/2" |
1/2" -14 NPT |
670770 |
| 3/4" |
3/4" -14 NPT |
670780 |
| 1" |
1" -11/12 NPT |
670790 |
|
|

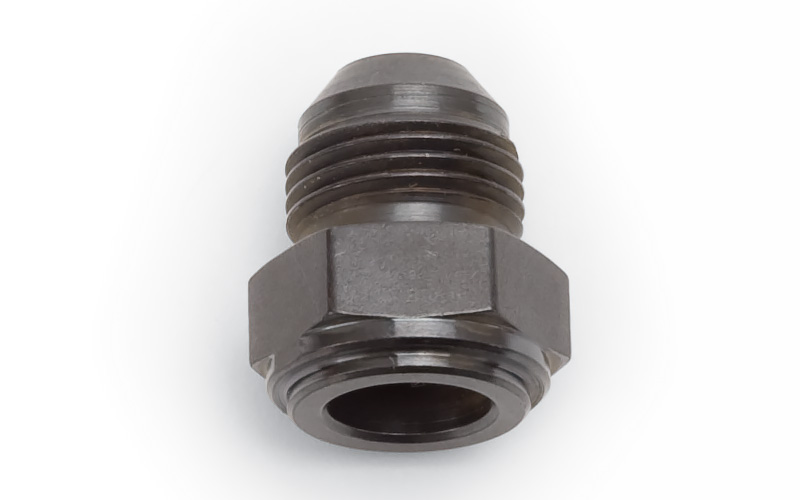

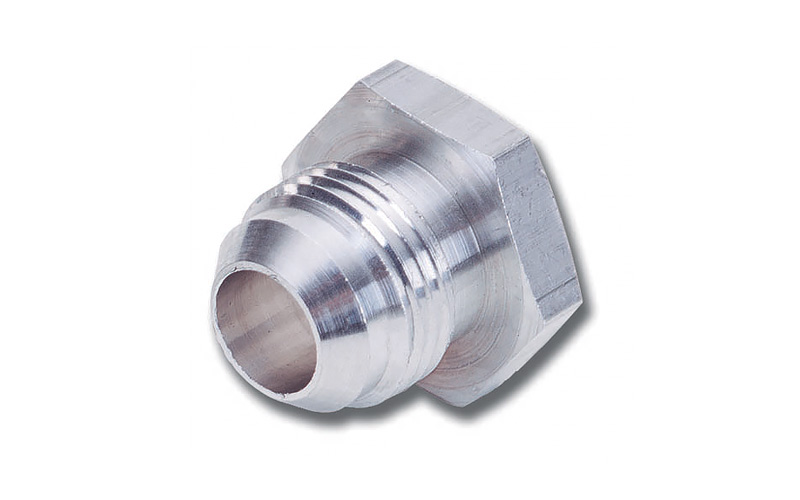

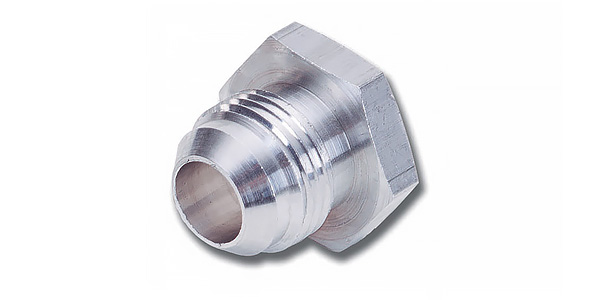

| MALE AN WELD BUNGS (ALUMINUM / STEEL) |
 |
| AN Size |
Thread |
Material |
Part # |
Use Fitting # |
| -6 AN |
9/16" -18 SAE |
Aluminum |
670580 |
Full Flow hose ends, Full Flow Swivel hose ends and Twist-Lok |
| -8 AN |
3/4" -16 SAE |
Aluminum |
670590 |
| -10 AN |
7/8" -14 SAE |
Aluminum |
670600 |
| -12 AN |
1-5/16" -12 SAE |
Aluminum |
670610 |
| -6 AN |
9/16" -18 SAE |
Steel |
683700 |
| -8 AN |
3/4" -16 SAE |
Steel |
683710 |
| -10 AN |
7/8" -14 SAE |
Steel |
683720 |
|
|

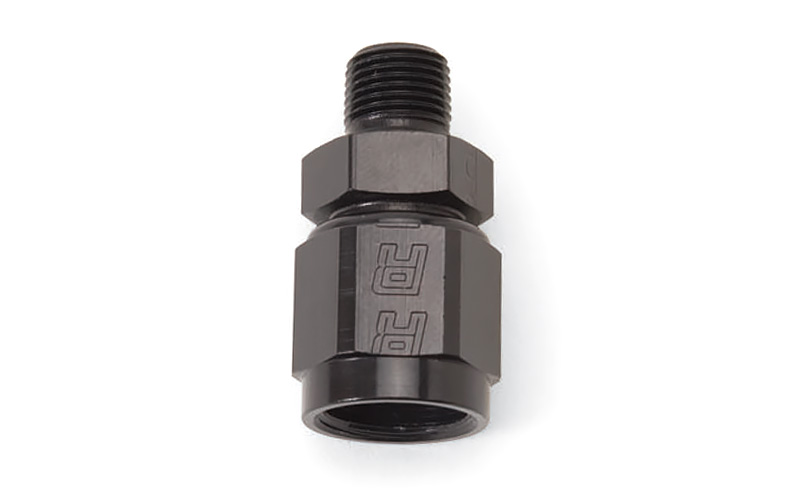

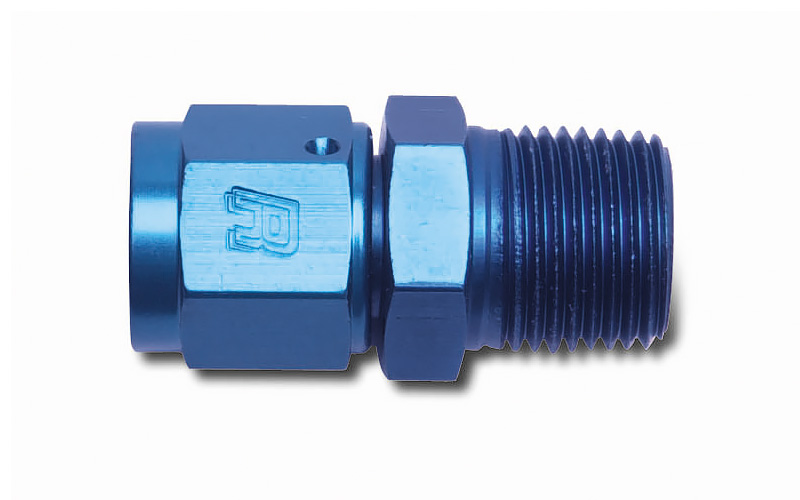

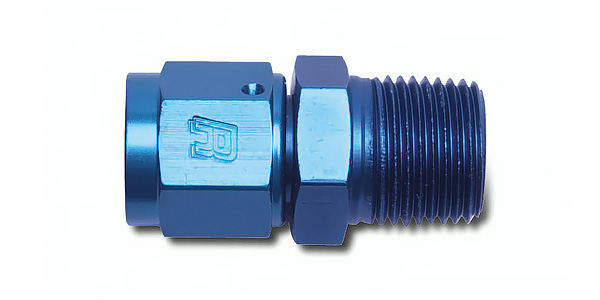

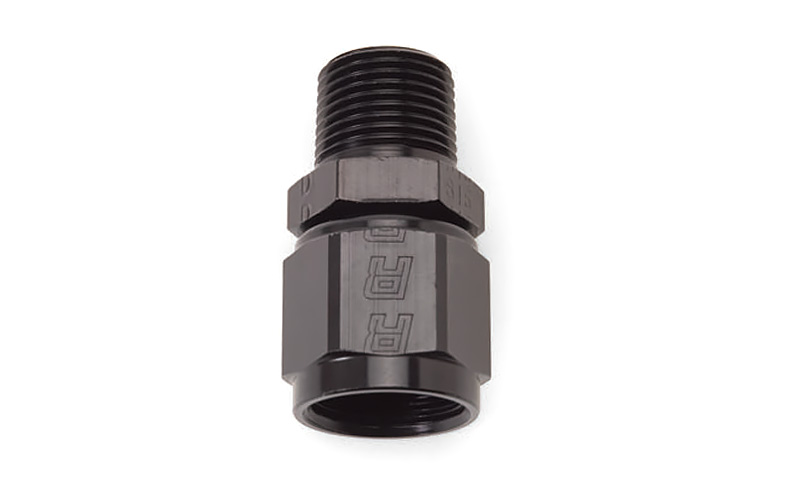

| AN FEMALE TO MALE NPT |
 |
| AN Size |
Thread Size |
Blue |
Black |
| -3 AN |
1/8" NPT |
614203 |
- |
| -4 AN |
1/8" NPT |
614204 |
614202 |
| -4 AN |
1/4" NPT |
614214 |
- |
| -6 AN |
1/8" NPT |
614216 |
614215 |
| -6 AN |
1/4" NPT |
614206 |
- |
| -6 AN |
3/8" NPT |
614226 |
614225 |
| -8 AN |
1/4" NPT |
614208 |
- |
| -8 AN |
3/8" NPT |
614218 |
614217 |
| -8 AN |
1/2" NPT |
614228 |
- |
| -10 AN |
3/8" NPT |
614220 |
- |
| -10 AN |
1/2" NPT |
614210 |
- |
| -12 AN |
1/2" NPT |
614222 |
- |
|
|

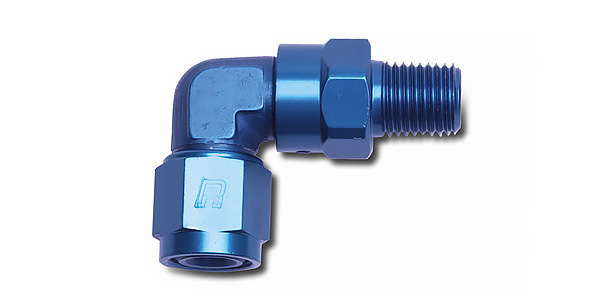

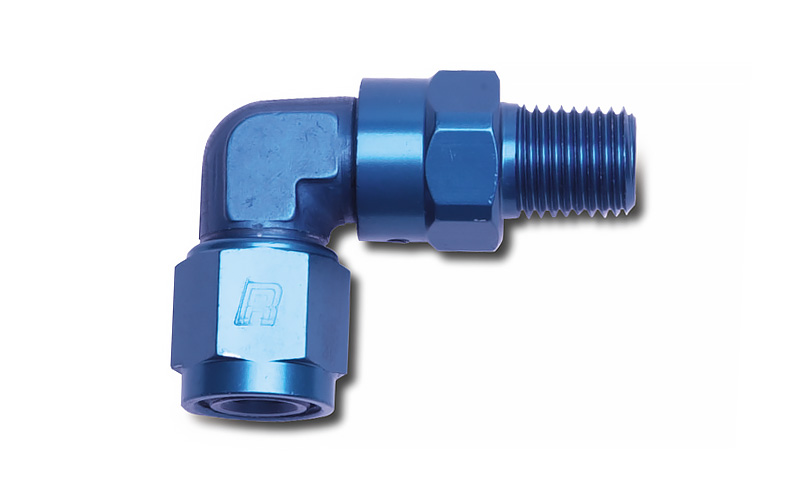

| 90° FEMALE AN TO MALE SWIVEL NPT |
 |
| AN Size |
Thread Size |
Blue |
| -6 AN |
1/4" NPT |
614006 |
| -6 AN |
1/8" NPT |
614016 |
| -6 AN |
3/8" NPT |
614026 |
| -8 AN |
1/4" NPT |
614008 |
| -8 AN |
3/8" NPT |
614018 |
| -8 AN |
1/2" NPT |
614028 |
| -10 AN |
1/2" NPT |
614010 |
| -10 AN |
3/8" NPT |
614020 |
| -12 AN |
3/4" NPT |
614012 |
| -12 AN |
1/2" NPT |
614022 |
|
|

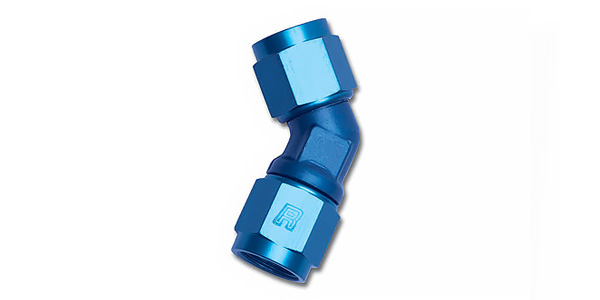

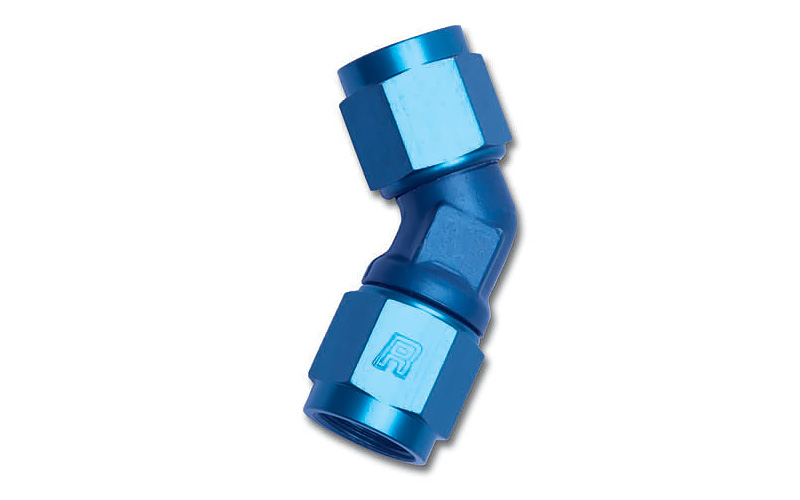

| 45° FEMALE AN TO FEMALE AN LOW PROFILE |
 |
| AN Size |
Blue |
| -3 AN |
614603 |
| -4 AN |
614604 |
| -6 AN |
614606 |
| -8 AN |
614608 |
| -10 AN |
614610 |
| -12 AN |
614612 |
| -16 AN |
614616 |
|
|

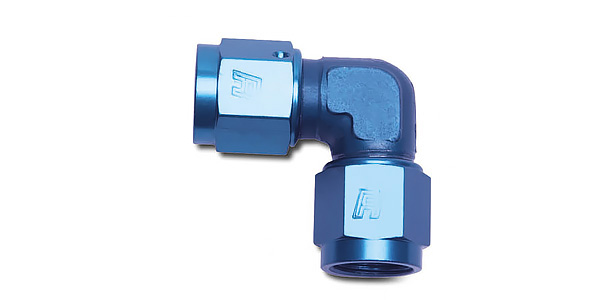

| 90° FEMALE AN TO FEMALE AN LOW PROFILE |
 |
| AN Size |
Blue |
| -3 AN |
614503 |
| -4 AN |
614504 |
| -6 AN |
614506 |
| -8 AN |
614508 |
| -10 AN |
614510 |
| -12 AN |
614512 |
| -16 AN |
614516 |
|
|

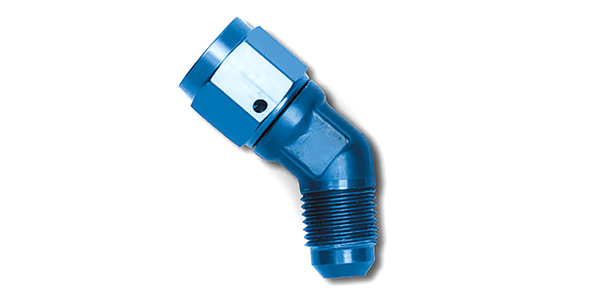

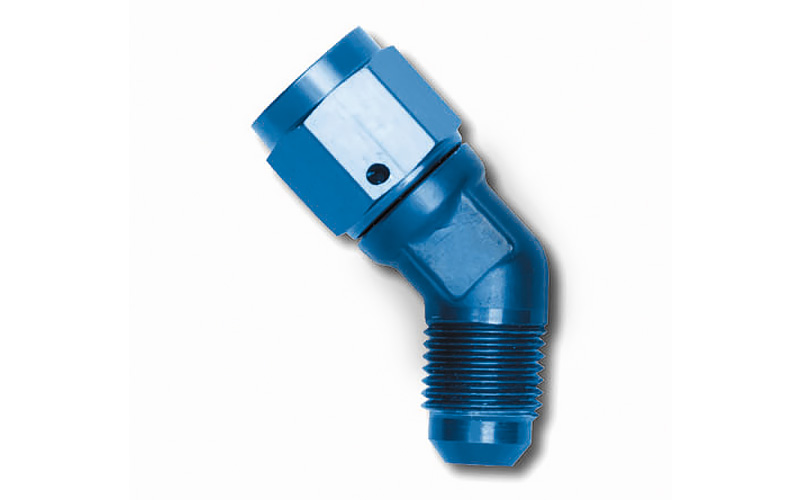

| 45° FEMALE AN TO MALE AN |
 |
| AN Size |
Blue |
| -3 AN |
614703 |
| -4 AN |
614704 |
| -6 AN |
614706 |
| -8 AN |
614708 |
| -10 AN |
614710 |
| -12 AN |
614712 |
|
|

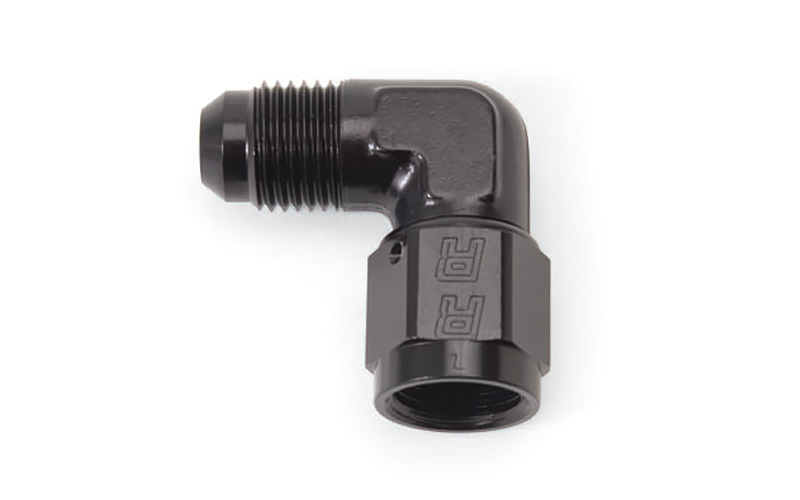

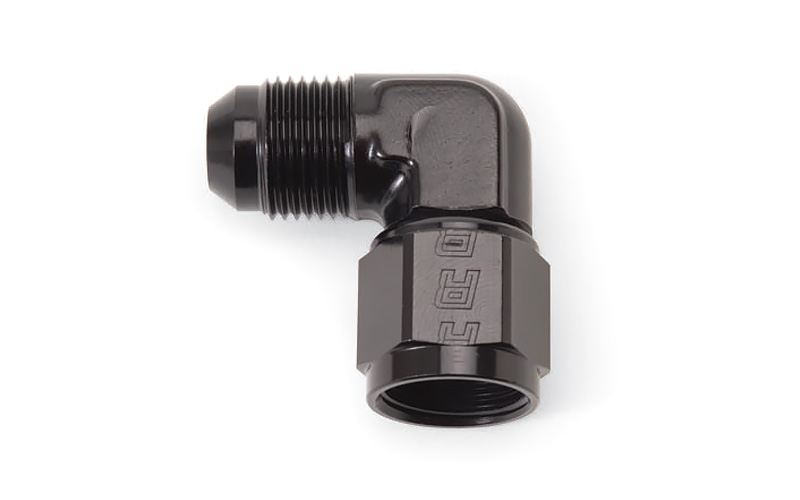

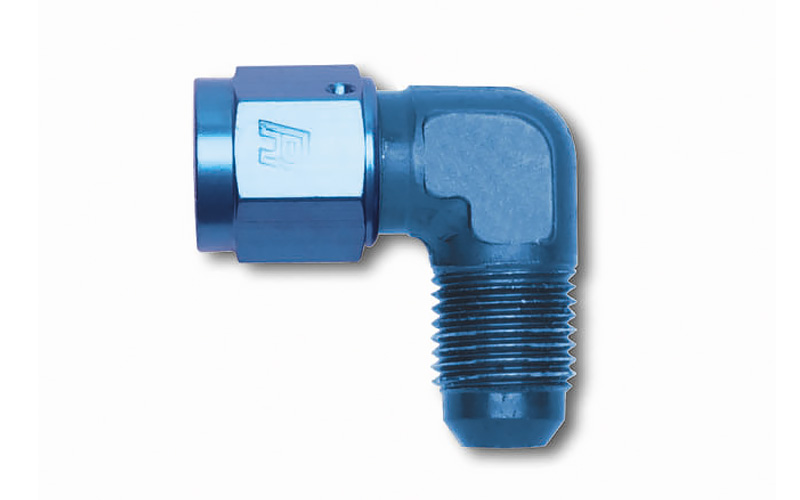

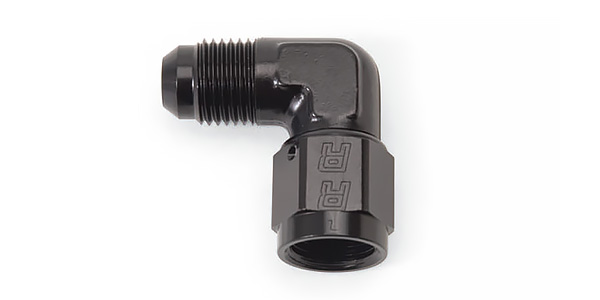

| 90° FEMALE AN TO MALE AN |
 |
| AN Size |
Blue |
Black |
| -3 AN |
614803 |
- |
| -4 AN |
614804 |
- |
| -6 AN |
614806 |
614805 |
| -8 AN |
614808 |
614807 |
| -10 AN |
614810 |
- |
|
|

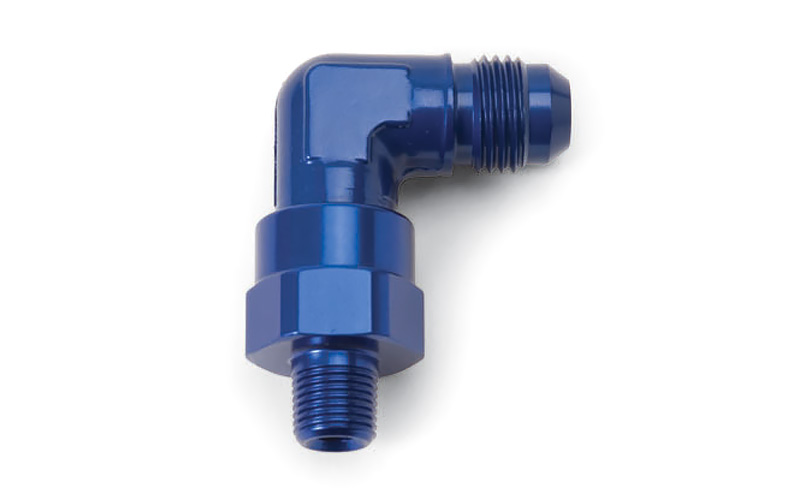

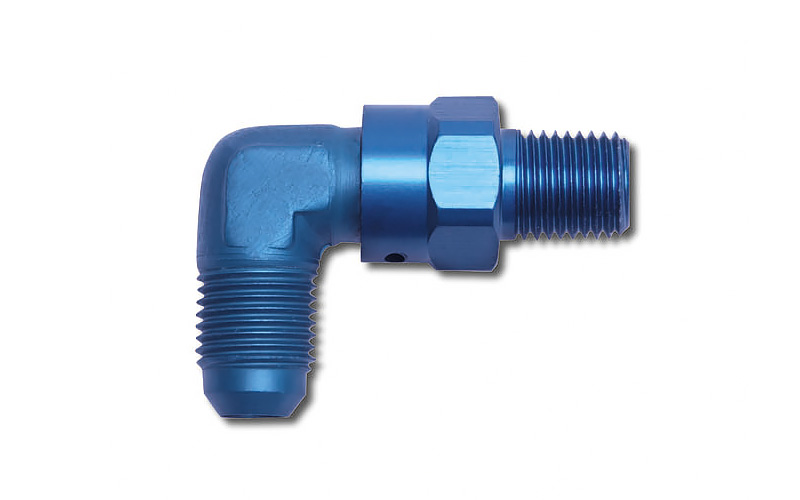

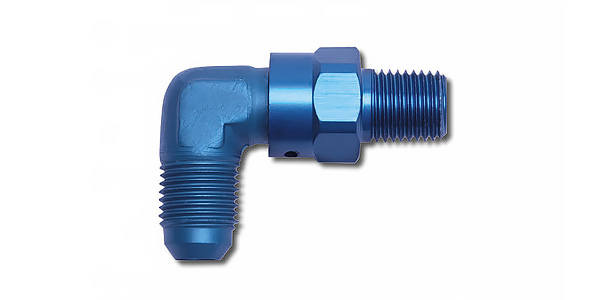

| 90° MALE AN TO MALE SWIVEL NPT |
 |
| AN Size |
Thread Size |
Blue |
| -6 AN |
1/4" |
614106 |
| -6 AN |
1/8" |
614116 |
| -6 AN |
3/8" |
614126 |
| -8 AN |
1/4" |
614108 |
| -8 AN |
3/8" |
614118 |
| -8 AN |
1/2" |
614128 |
| -10 AN |
1/2" |
614110 |
| -10 AN |
3/8" |
614120 |
| -12 AN |
3/4" |
614112 |
| -12 AN |
1/2" |
614122 |
|
|

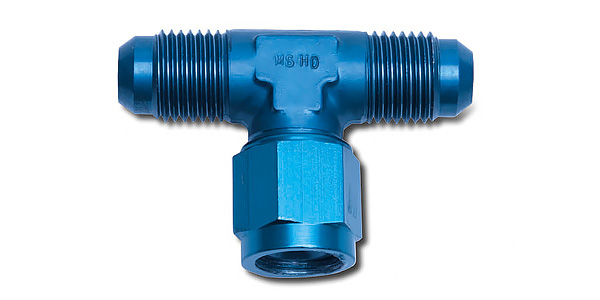

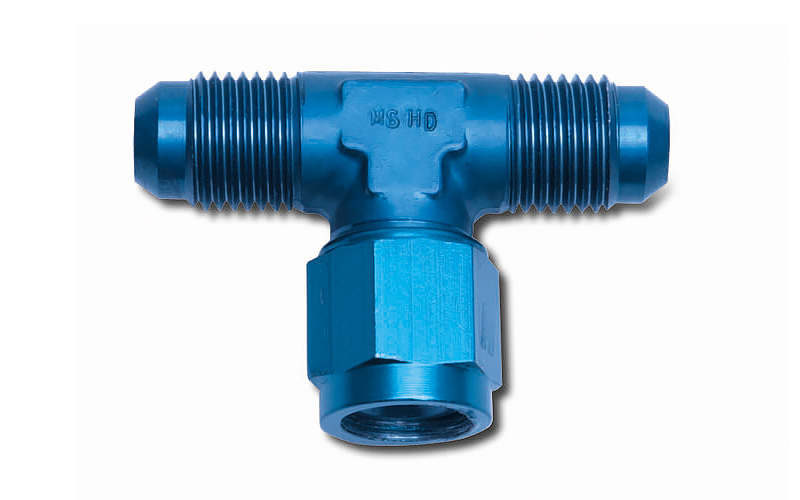

| AN TEE - FEMALE AN ON SIDE |
 |
| AN Size |
Blue |
| -3 AN |
614303 |
| -4 AN |
614304 |
| -6 AN |
614306 |
| -8 AN |
614308 |
| -10 AN |
614310 |
|
|

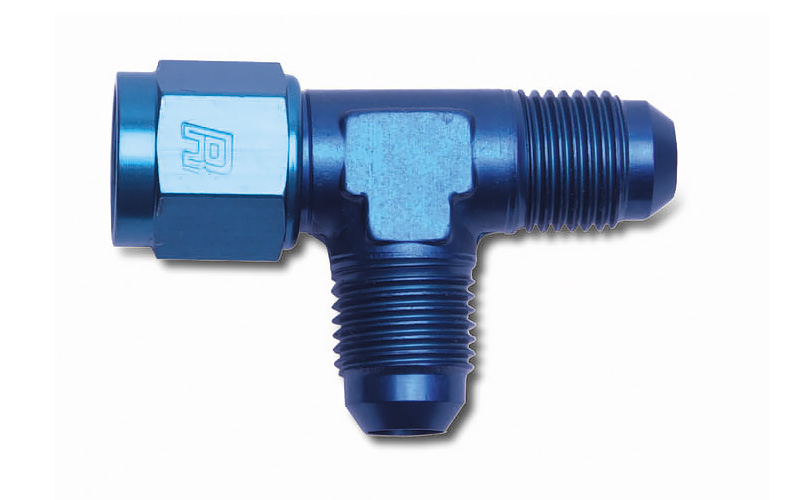

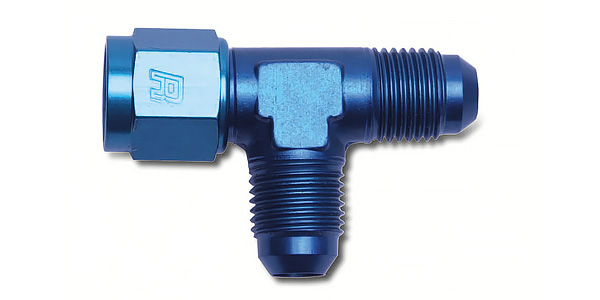

| AN TEE - FEMALE AN ON RUN |
 |
| AN Size |
Blue |
Black |
| -3 AN |
614403 |
- |
| -4 AN |
614404 |
- |
| -6 AN |
614406 |
614405 |
| -8 AN |
614408 |
- |
| -10 AN |
614410 |
- |
|
|
