Brake & Clutch Hose Accessories By Russell Performance
BRACKETS AND HARDWARE
Brackets and Hardware By Russell Performance Products
Application Quantity Part #

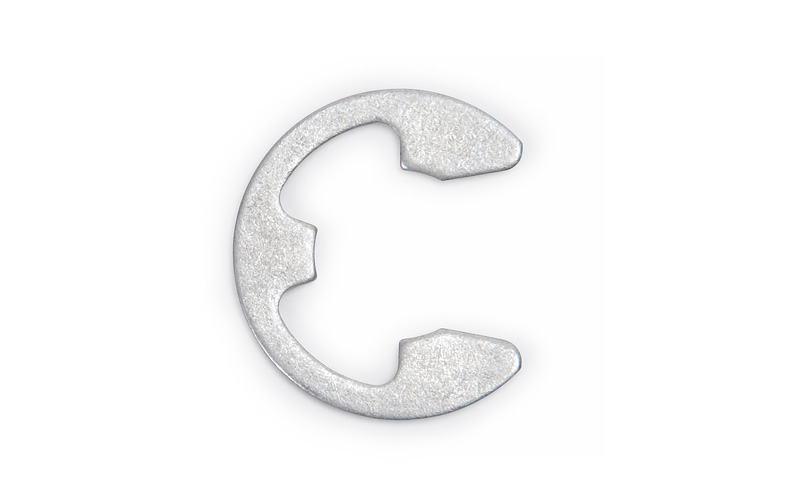

E-clip 10 683940

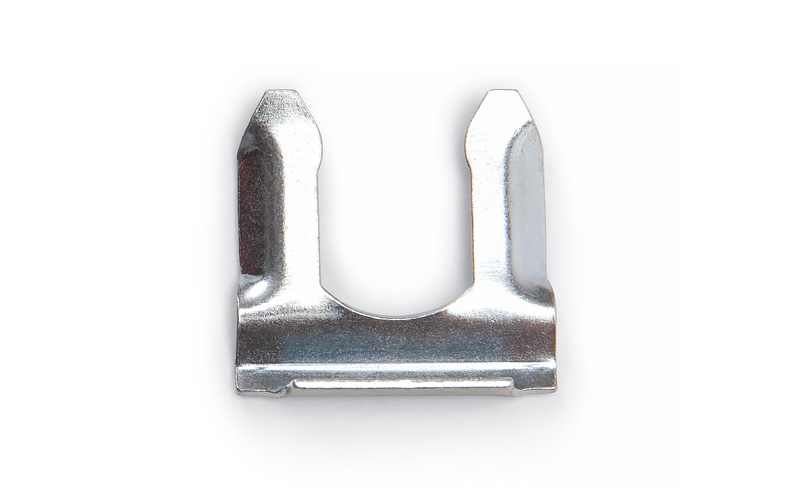

Brake Line Retaining Clip 10 683941

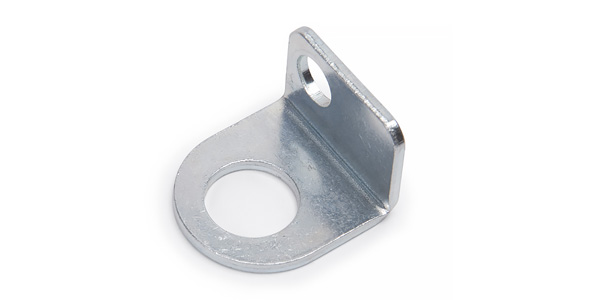

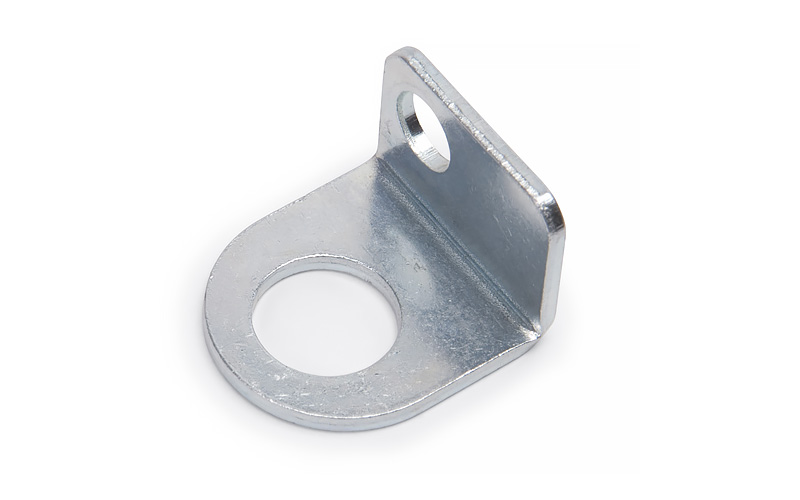

Bolt-on 90° Mounting Bracket 2 683942

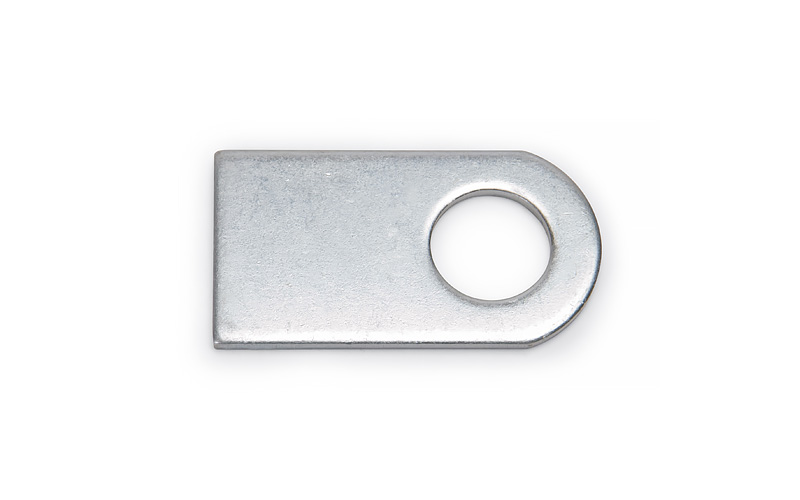

Weld-on Brake Hose Bracket 2 683943
BRAKE LINE CLAMPS
These brake line clamps offer a professional and secure method of attaching brake hard line to a frame rail. Designed to work with 3/16" O.D. hard line.
Brake Line Clamps By Russell Performance Products
Application Quantity Part #

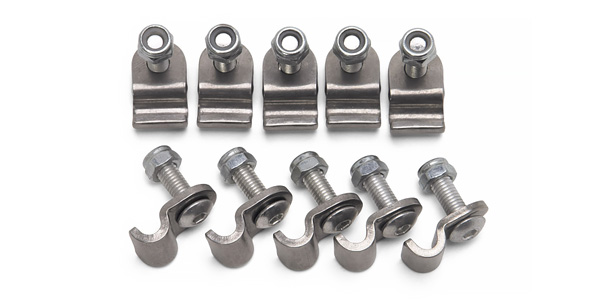

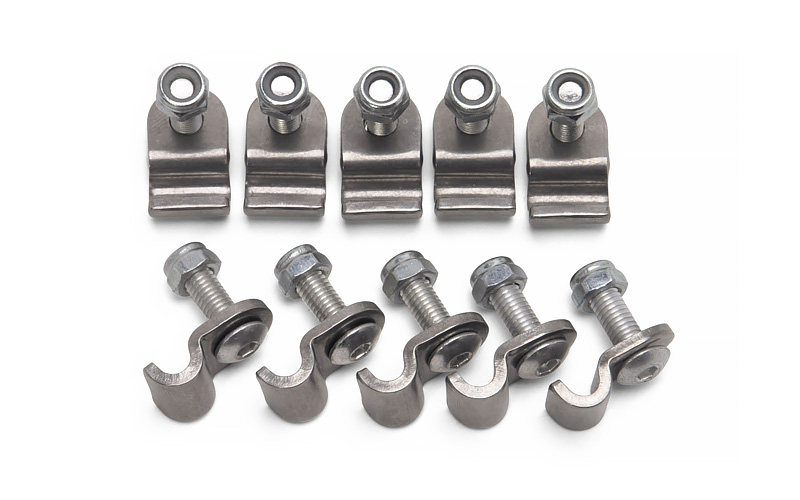

Stainless Steel Brake Line Clamps 12 654030

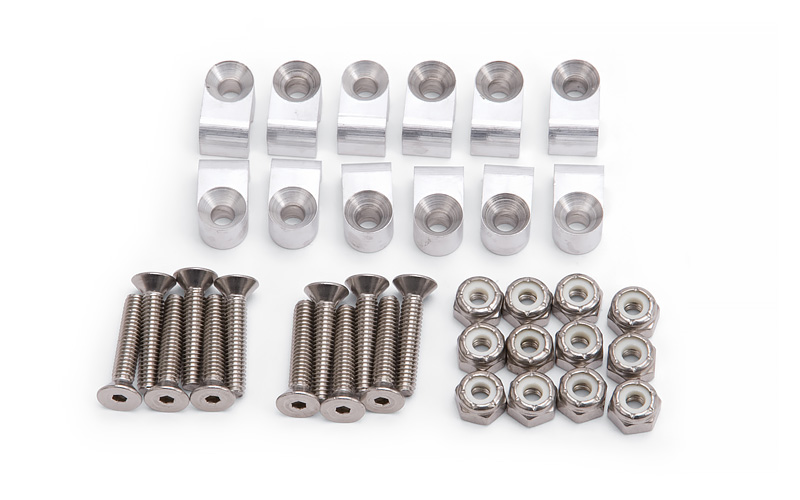

Billet Aluminum Tubing Clamps 12 654020

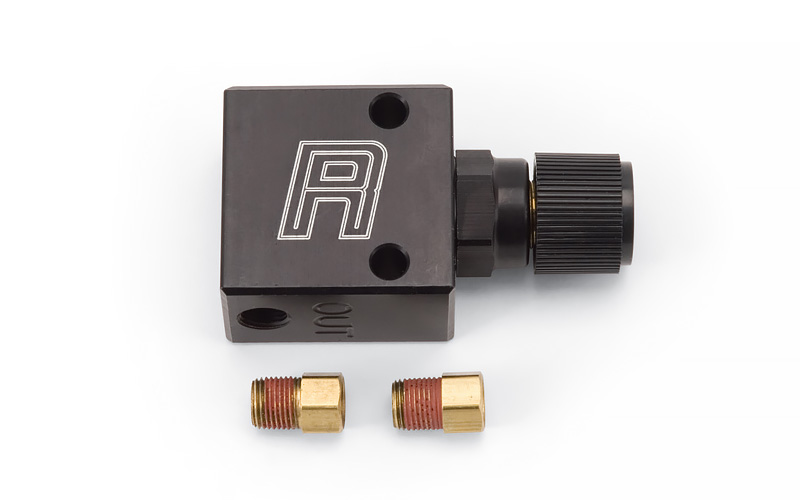

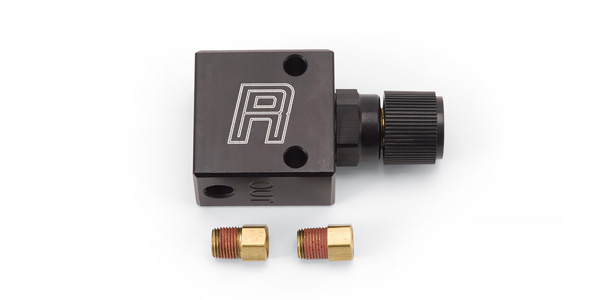

BRAKE PROPORTIONING VALVE
Brake proportioning valves are manufactured from billet aluminum and anodized. They are adjustable up to a 60% pressure reduction. Valves Include 3/8"- 24 inverted flare hard line adapter and utilizes anti-corrosive brass internal components.
Brake Proportioning Valve By Russell Performance Products
Application Part #
Russell Polished Residual Valve 654000

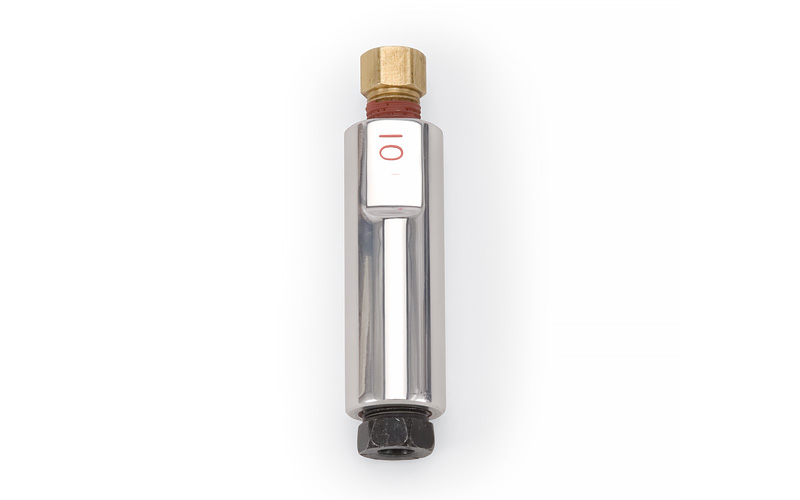

POLISHED RESIDUAL VALVE
Russell brake residual valves eliminate spongy-pedal feel by retaining brake-line pressure and keeping your pedal firm. The valve stops brake fluid from draining back into the master cylinder; this keeps your caliper pistons and brake shoes from fully retracting so your brake system stays primed without brake drag. The result is a firmer pedal that engages quicker and provides increased braking response. These residual valves are polished for great looks and available in 2 psi for disc brakes & 10 psi for drum brakes; drums require more pressure to compensate for return spring tension.
Brake Proportioning Valve By Russell Performance Products
Size Quantity Part #
2-lb. 1 654010

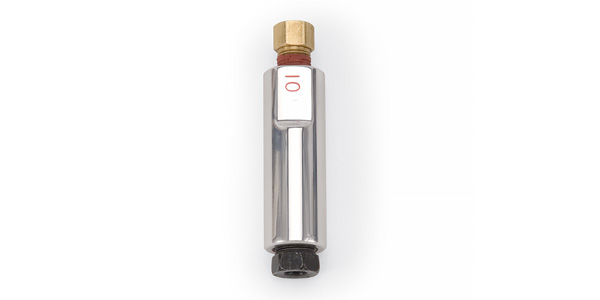

10-lb. 1 654040
